routers.cgi screenshots

Here is a selection of screenshots from a previous version (v1.31) of routers.cgi.

A working demo is in the process of being set up here.

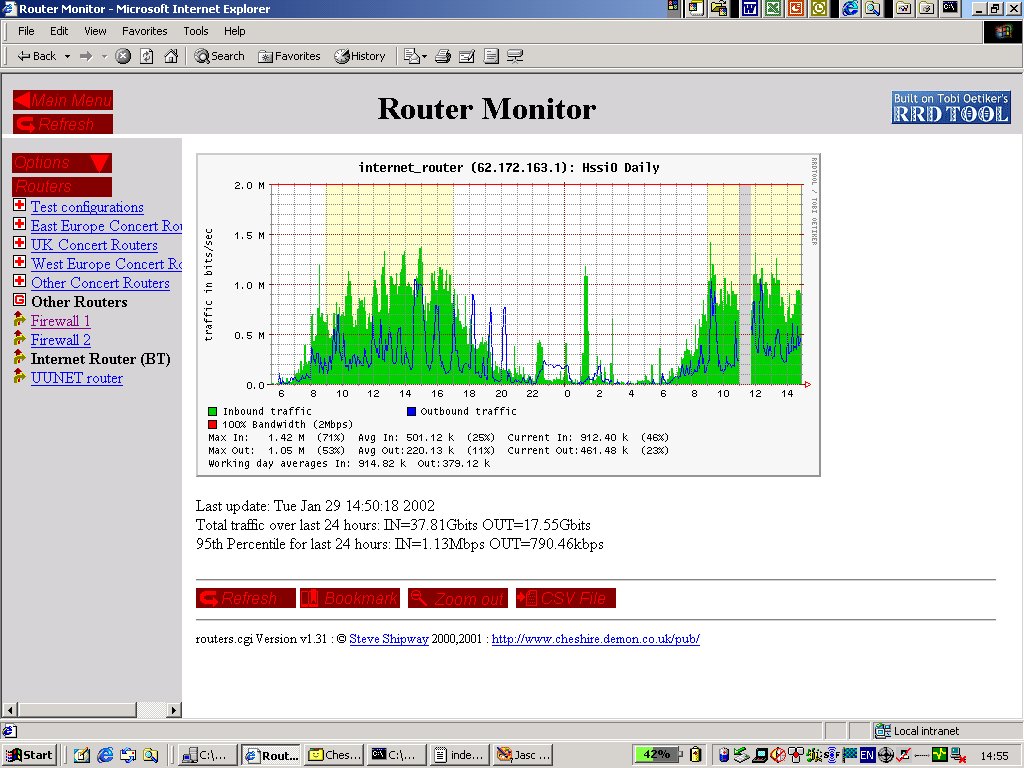

• Main Screen - 600x800, JPG : This shows the router list (with grouping enabled), and a daily graph (with working day highlighting enabled). The 95th percentile calculations are also switched on, and the output is visible at the bottom of the graph.
• Main Screen with Options - 600x800, JPG : This shows the interface list and display options, and a daily graph as before.
• Summary Screen - 600x800, JPG : This shows the summary screen for this router, with short graphs for several of the interfaces visible on screen.

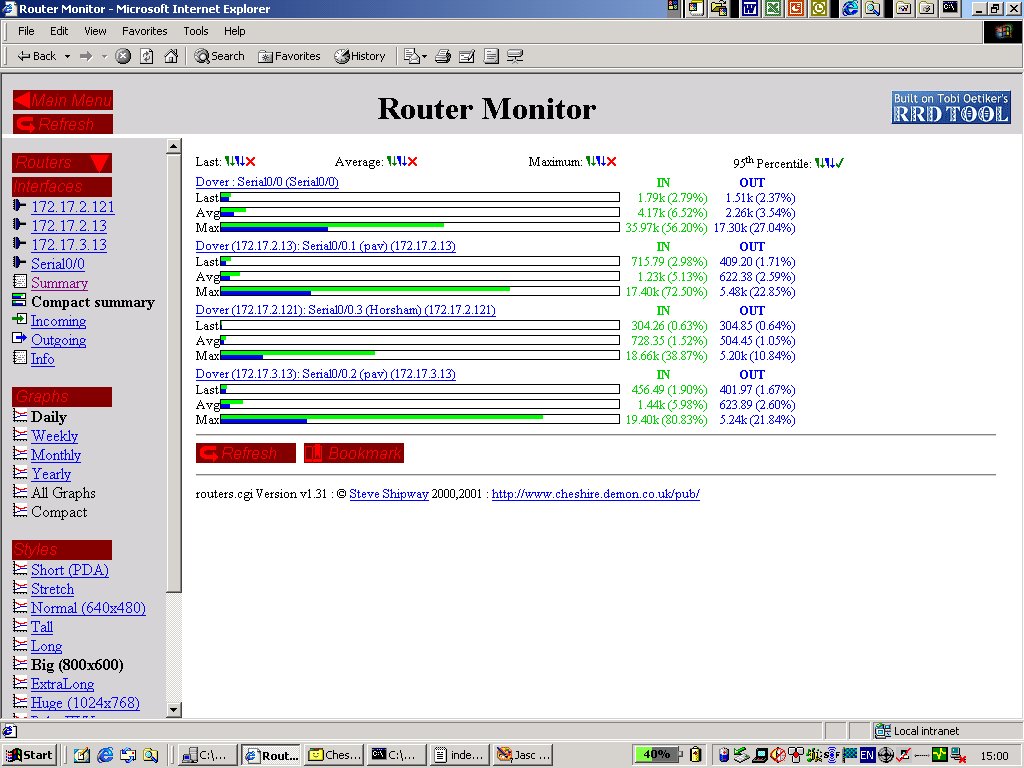

• Compact summary screen - 600x800, JPG : This shows the compact summary screen, in daily mode, with no sorting and 95th Percentile bar disabled.
• Incoming graph - 600x800, JPG : This shows the daily Incoming graph, showing the incoming traffic for all interfaces on the same graph.

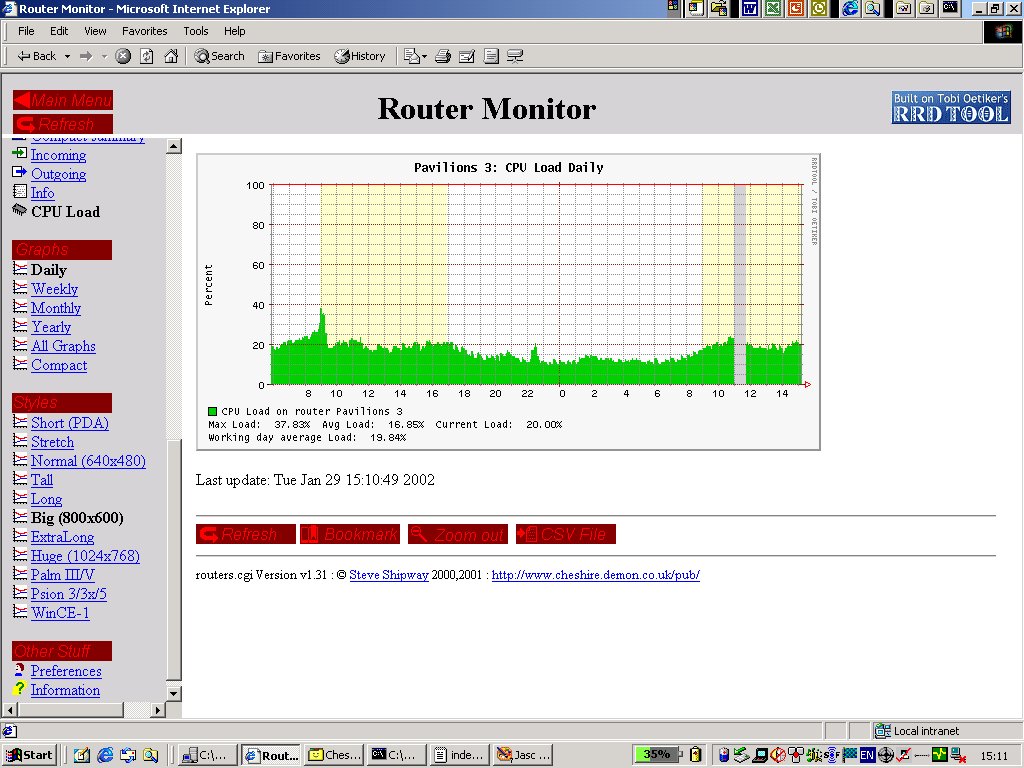

• CPU graph - 600x800, JPG : This shows the daily CPU graph, showing the CPU loading for a router. This is with the CPU option enabled.
